FOX Purrazzo Mix

Purrazzo Mix • PU2019 RAL3015

FOX PURRAZZO MIX is a polyurethane resin-based, two-component, solvent-free bio-terrazzo decorative coating system with high chemical resistance, antibacterial properties and steam cleanability. Layer structure: PRIMER HB primer, FOX EPOTHANE® ISO-CRACK EP-2K crack-bridging membrane, quartz broadcast, FOX TERRAZZO L STRIP profile, FOX PURRAZZO MIX + aggregate + FILLER TF terrazzo, pore filling with the same binder, FD793 sealer + TOPCOAT WB clear matt top coat.

Purrazzo Mix is offered in 19 sample patterns (PU binder code × RAL colour); the aggregate choice (Standard / Crystal / Exotic, 1-3 / 3-6 / 6-9 mm) completes the pattern. The colour choice does not change the layer structure.

Application Surface

ColourPU2019 RAL3015

Floor

Primer

Crack-Bridging Membrane

Broadcast

Profile

Purrazzo Polyurethane Terrazzo

Pore Filling

Top Coat

Layers & Products7 layers

1

Primer
Required

Epoxy based, two-component, solvent-free, low-viscosity clear primer for damp surfaces; 0,1-0,3 mm (60-70 AFS) quartz sand is broadcast onto it.

Main Product 0,1-0,3 mm Kuvars Kumu (60-70 AFS)

Epoxy based, two-component, solvent-free, low-viscosity clear primer for damp surfaces; 0,1-0,3 mm (60-70 AFS) quartz sand is broadcast onto it.

Main Product FOX EPOTHANE® PRIMER HB

Epoxy based, two-component, solvent-free, low-viscosity clear primer for damp surfaces; 0,1-0,3 mm (60-70 AFS) quartz sand is broadcast onto it.
2

Crack-Bridging Membrane
Required

Epoxy-polyurethane-based, 100% solids, flexible crack-bridging membrane; it prevents cracks from reflecting through to the surface. Applied together with the anti-fracture glass textile system mesh.

Main Product FOX CAM TEKSTİLİ FİLE 160 gr/m²

Epoxy-polyurethane-based, 100% solids, flexible crack-bridging membrane; it prevents cracks from reflecting through to the surface. Applied together with the anti-fracture glass textile system mesh.

Main Product FOX EPOTHANE® ISO-CRACK EP-2K

Epoxy-polyurethane-based, 100% solids, flexible crack-bridging membrane; it prevents cracks from reflecting through to the surface. Applied together with the anti-fracture glass textile system mesh.
3

Broadcast
Required

Broadcasting of 1-2 mm quartz aggregate.

Main Product 1-2 mm Kuvars Agrega

Broadcasting of 1-2 mm quartz aggregate.
4

Profile
Required

An aluminium profile 8/20 mm high, developed specifically to form patterns in Fox Terrazzo coating systems.

Main Product FOX TERRAZZO L STRIP 8/20 mm

An aluminium profile 8/20 mm high, developed specifically to form patterns in Fox Terrazzo coating systems.
5

Purrazzo Polyurethane Terrazzo
Required

Polyurethane based, antibacterial, steam-cleanable decorative terrazzo coating; pigmented binder (selected PU × RAL combination) + natural coloured aggregate + resin based filler.

Main Product FOX PURRAZZO MIX

Polyurethane based, antibacterial, steam-cleanable decorative terrazzo coating; pigmented binder (selected PU × RAL combination) + natural coloured aggregate + resin based filler.

Main Product FOX EPOTHANE® FILLER TF

Polyurethane based, antibacterial, steam-cleanable decorative terrazzo coating; pigmented binder (selected PU × RAL combination) + natural coloured aggregate + resin based filler.

Main Product FOX AGREGA STANDART / KRİSTAL / EGZOTİK — 1-3 / 3-6 / 6-9 mm

Polyurethane based, antibacterial, steam-cleanable decorative terrazzo coating; pigmented binder (selected PU × RAL combination) + natural coloured aggregate + resin based filler.
6

Pore Filling
Required

Filling of the pores after grinding with the same pigmented Purrazzo Mix binder.

Main Product FOX PURRAZZO MIX

Filling of the pores after grinding with the same pigmented Purrazzo Mix binder.
7

Top Coat
Required

Polyurethane based sealer + clear matt topcoat: a UV resistant, non-yellowing, dust-proofing, water-repellent protection layer followed by a water-borne, aliphatic clear matt top coat with high abrasion and scratch resistance.

Main Product FOX PURATHANE® TOPCOAT WB

Polyurethane based sealer + clear matt topcoat: a UV resistant, non-yellowing, dust-proofing, water-repellent protection layer followed by a water-borne, aliphatic clear matt top coat with high abrasion and scratch resistance.

Main Product FOX DOMINO® PU SEALER FD793

Polyurethane based sealer + clear matt topcoat: a UV resistant, non-yellowing, dust-proofing, water-repellent protection layer followed by a water-borne, aliphatic clear matt top coat with high abrasion and scratch resistance.

About Purrazzo Mix

Purrazzo Mix is a polyurethane-based, antibacterial and steam-cleanable poured terrazzo floor coating system. Naturally coloured aggregates are added to the pigmented FOX PURRAZZO MIX binder, the pattern is formed with aluminium L profiles, the surface is ground, the pores are filled with the same binder and the floor is protected with a clear top coat.

The concrete surface is prepared with abrasive equipment and primed with FOX EPOTHANE® PRIMER HB; the FOX ISO-CRACK epoxy membrane system (FOX EPOTHANE® ISO-CRACK EP-2K + glass textile mesh) is mandatory in order to prevent cracks from reflecting through to the surface. The pattern areas are separated with FOX TERRAZZO L STRIP profiles. The FOX PURRAZZO MIX A and B components are mixed; 3.85 units of aggregate and 1.25 units of FOX EPOTHANE® FILLER TF are added to 1 unit of binder, then poured and levelled with a screed bar. The cured surface is ground with diamond and resin pads until the aggregate is exposed; the pores are filled with the same pigmented binder and the floor is finished with FOX DOMINO® PU SEALER FD793 and FOX PURATHANE® TOPCOAT WB clear matt.

The consumption figures are given for ideal conditions at +23 °C; a site inspection with our expert team is recommended before the system solution.

Advantages

Antibacterial and steam-cleanable.
High chemical resistance.
Seamless and easy to apply; excellent compressive and flexural strength.
The desired pattern with different RAL colour options and aggregate sizes.
A safe terrazzo build-up thanks to the crack-bridging membrane.
Requires minimum maintenance and is simple to repair; does not shrink.

Technical Specifications

Binder	FOX PURRAZZO MIX — polyurethane, two-component, solvent-free, 100% solids
Mixing Ratio	1 part binder : 3.85 parts aggregate : 1.25 parts FOX EPOTHANE® FILLER TF
Aggregate	FOX AGGREGATE Standard / Crystal / Exotic — 1-3 / 3-6 / 6-9 mm
Primer	FOX EPOTHANE® PRIMER HB + 0.1-0.3 mm quartz sand
Crack Bridging	FOX EPOTHANE® ISO-CRACK EP-2K + glass textile mesh 160 g/m²
Profile	FOX TERRAZZO L STRIP (aluminium, 8/20 mm)
Top Coat	FOX DOMINO® PU SEALER FD793 + FOX PURATHANE® TOPCOAT WB clear matt
Colour	19 sample patterns (PU code × RAL)
Density	1.17±0.05 g/cm³
Adhesion Strength	≥1.5 N/mm² to concrete
Shore D Hardness (7 days)	≥60
Taber Abrasion (CS10, 1 kg, 1000 cycles)	≥70 mg
Pot Life	35 dakika
Application Temperature	+10 °C / +30 °C
Ready for Use (20 °C)	Foot traffic 24 hours, light traffic 3 days, full cure 7 days

System Detail

Stage	Product / Application Type	Colour
Primer	0,1-0,3 mm Kuvars Kumu (60-70 AFS)
Primer	FOX EPOTHANE® PRIMER HB	Clear
Crack-Bridging Membrane	FOX CAM TEKSTİLİ FİLE 160 gr/m²
Crack-Bridging Membrane	FOX EPOTHANE® ISO-CRACK EP-2K
Broadcast	1-2 mm Kuvars Agrega
Profile	FOX TERRAZZO L STRIP 8/20 mm
Purrazzo Polyurethane Terrazzo	FOX PURRAZZO MIX
Purrazzo Polyurethane Terrazzo	FOX EPOTHANE® FILLER TF
Purrazzo Polyurethane Terrazzo	FOX AGREGA STANDART / KRİSTAL / EGZOTİK — 1-3 / 3-6 / 6-9 mm
Pore Filling	FOX PURRAZZO MIX
Top Coat	FOX PURATHANE® TOPCOAT WB	Clear Matt
Top Coat	FOX DOMINO® PU SEALER FD793	Clear

Areas of Use

Airports and Metro Stations
Galleries
Shopping Centres and Supermarkets
Shops and Showrooms
Hotels
Hospitals and Care Homes
Medical practices
Schools and Nurseries
Aircraft Hangars and Garages
Areas Requiring Hygiene

Which floors can it be applied to?

Applied to concrete floors at least 3 weeks old with ≥25 N/mm² compressive and ≥1.5 N/mm² tensile strength; moisture must be ≤4%, the floor temperature at least +10 °C and 3 °C above the dew point. Cement laitance is removed by shot blasting, milling or diamond grinding; repairs are made with FOX EPOTHANE® PRIMER + quartz sand mortar.

Is the Intermediate Coat (FOX EPOTHANE® BASECOAT) mandatory?

No, it is optional; it is applied if there is undulation on the surface or if preferred. For conditions outside the standard, contact technical service for system details.

How is it maintained?

The seamless (jointless) surface does not hold dirt; it is easy to clean, requires minimum maintenance and is simple to repair. After application the coating must be protected from direct water contact for at least 24 hours.

What are the colour options?

Each Purrazzo system is offered with its own colour chart; the desired design can be achieved with different RAL colour options. The colours on the chart may differ from the original colours depending on the printing technique and the ambient light.

What sets Mix apart from epoxy terrazzo?

Its binder is polyurethane: it is antibacterial, steam-cleanable and flexible. The pattern is determined by the PU binder × RAL colour combination and the aggregate choice (Standard / Crystal / Exotic, 1-3 / 3-6 / 6-9 mm).

Is the crack-bridging membrane mandatory?

Yes. The FOX ISO-CRACK epoxy membrane system is mandatory before terrazzo coatings in order to prevent existing and potential cracks in the concrete surface from reflecting onto the terrazzo surface.

System Products

FOX EPOTHANE® PRIMER HB

FOX EPOTHANE® PRIMER HB is a two-component, solvent-free, low-viscosity transparent epoxy primer set developed for dry and damp concrete and steel surfaces. It is used as a primer under epoxy and polyurethane floor coatings.

Suitable for interior and exterior use.
Can be applied and fully cures below +10°C and up to 100% relative humidity.
Provides good corrosion protection on steel.

FOX EPOTHANE® ISO-CRACK EP-2K

FOX EPOTHANE® ISO-CRACK EP-2K is a 100% solids, two-component, flexible epoxy-polyurethane membrane designed to prevent reflective cracking in FOX BAU TERRAZZO coating systems. With 140–160% elongation at break, it provides superior crack bridging against horizontal surface movement.

100% solids for low odour and workplace safety during installation.
Provides excellent adhesion.
Has excellent chemical resistance.

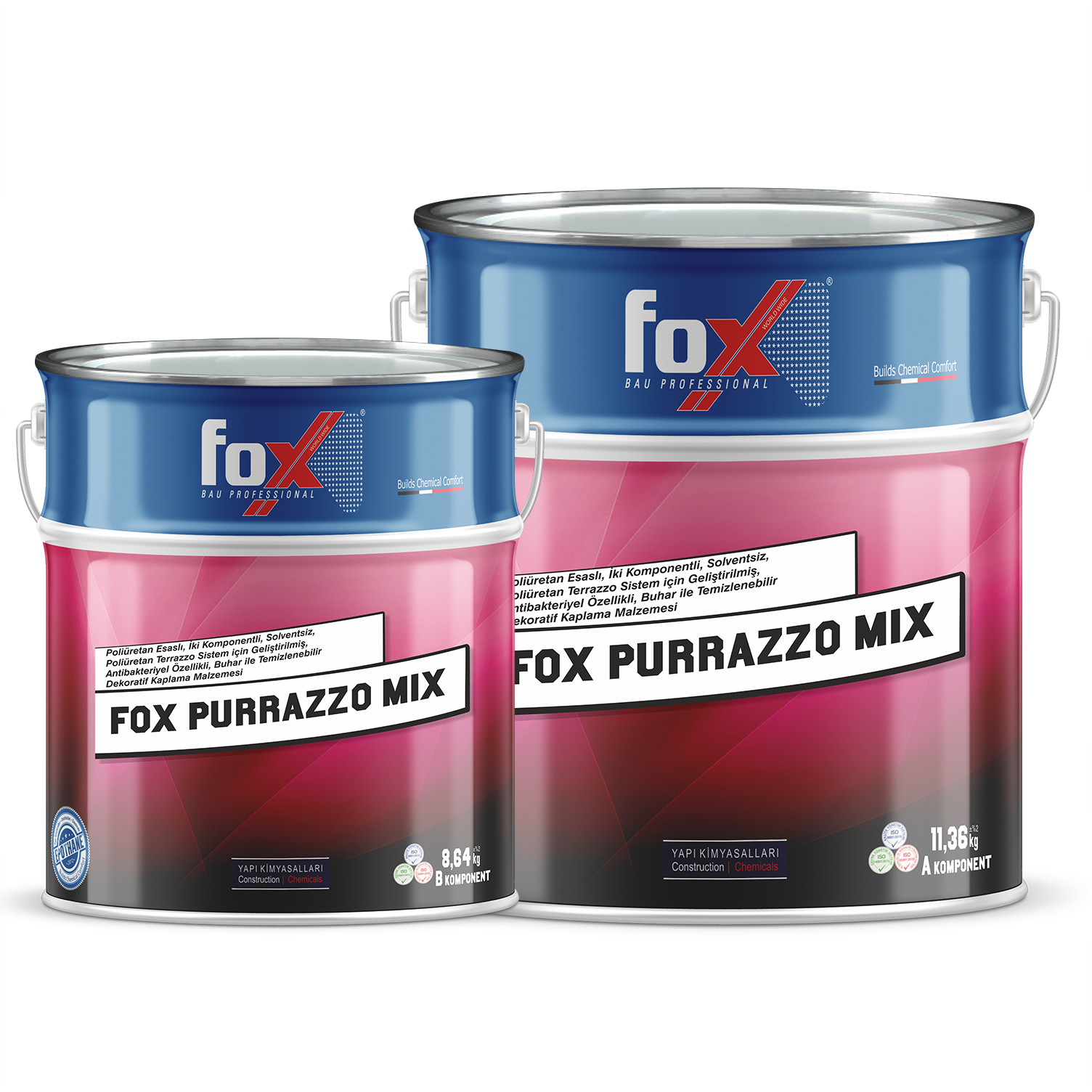

FOX PURRAZZO MIX is a two-component, polyurethane resin-based, solvent-free, antibacterial bio-terrazzo decorative coating material. It is used in high-traffic areas such as airports, hospitals, schools, and shopping centres.

Seamless and easy to apply.
Durable.
Excellent compressive and flexural strength.

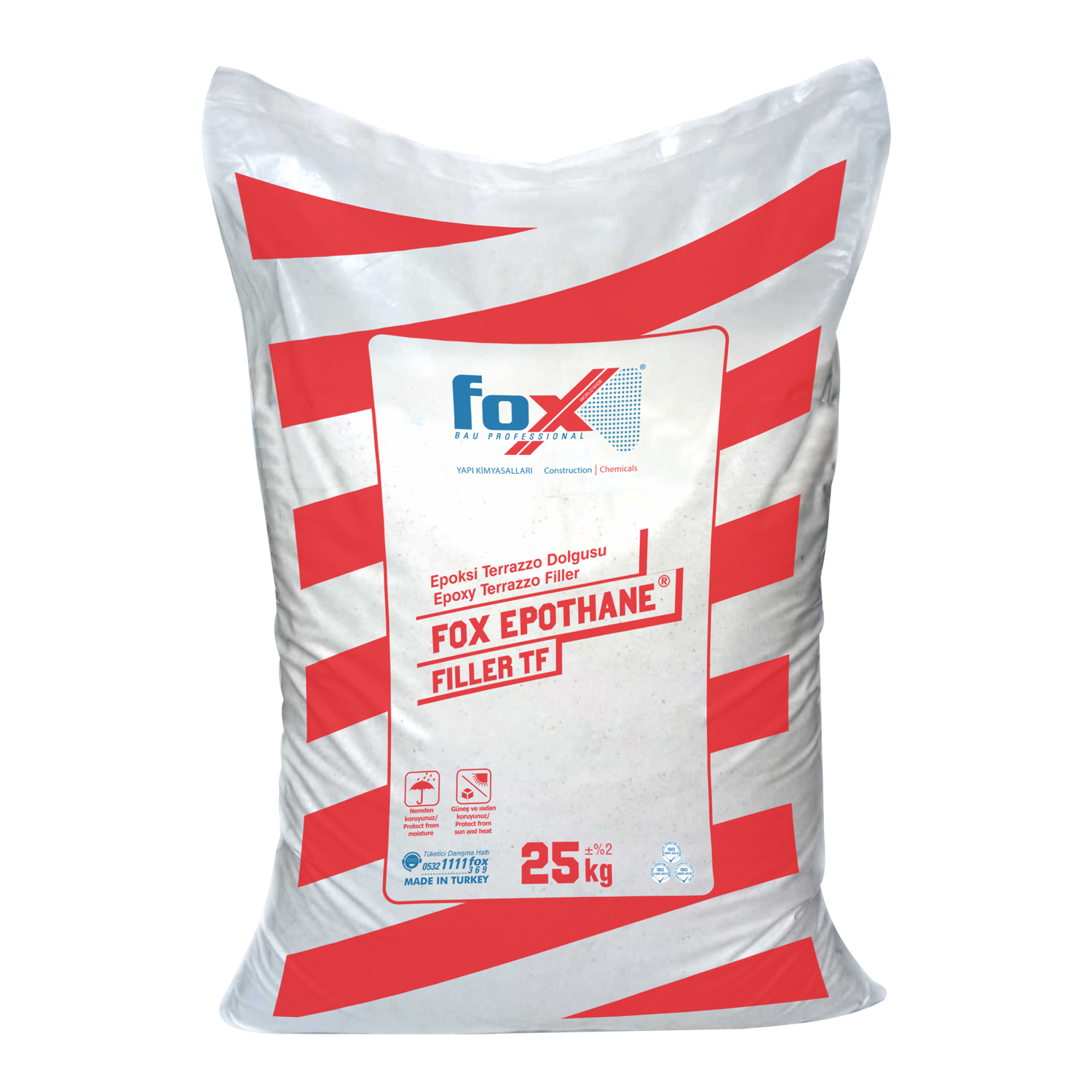

FOX EPOTHANE® FILLER TF

FOX EPOTHANE® FILLER TF is a quartz-based epoxy terrazzo filler specially developed for the FOX ZEUGMA EPOXY TERRAZZO System Matrix. By filling the voids between aggregates, it ensures the system achieves a homogeneous and uniform structure.

Facilitates easier application of the epoxy terrazzo system.
Ensures that the voids between the aggregates and the matrix are filled.

FOX DOMINO® PU SEALER FD793

FOX DOMINO® PU SEALER FD793 is a single-component, polyurethane-based, solvent-borne transparent topcoat protective material that prevents dusting on all types of concrete floors, imparts a glossy appearance, and provides water-repellent properties.

High abrasion resistance; prevents dusting and creates a harder surface.
Provides waterproofing; prevents cracking that may result from freezing.
Used as a polish thanks to the glossy film layer it forms.

FOX PURATHANE® TOPCOAT WB

FOX PURATHANE® TOPCOAT WB is a modified polyurethane-based, two-component, water-based, UV-resistant topcoat with high abrasion resistance, containing aliphatic isocyanate. It is used in epoxy and polyurethane floor systems, on walls and in various industrial areas.

UV resistant.
Provides excellent adhesion.
Has excellent abrasion resistance.
