FOX Cement Terrazzo (Lycia) — Cast-in-Place Cement Terrazzo

Cement Terrazzo • DP 1028 • Medium • Matte

FOX LYCIA CEMENT TERRAZZO is a self-levelling, early-setting decorative terrazzo floor coating system produced by casting crushed aggregates in place with a cement-based binder and then grinding the surface. The binder is FOX DOMINO® PLUS FD772; total thickness 18-20 mm.

Lycia Cement Medium · Matt; a cement terrazzo system with 1-3 / 2-4 / 3-6 / 6-9 mm crushed aggregate and a matt top coat finish. Top coat: FOX DOMINO® PU SEALER FD793 + FOX PURATHANE® TOPCOAT WB (matt).

Aggregate Size

Top Coat

Colour / SampleDP 1028

Application Area

Consumption Calculation

Calculate the amount of material needed for the system.

Floor

Primer

Crack-Bridging Membrane

Broadcast

Profile

Coating (Binder + Aggregate)

Grouting

Top Coat (Matt)

Layers & Products7 layers

1

Primer
Required

Main Product FOX EPOTHANE® PRIMER HB
~0.4 kg/m²

An epoxy-based, two-component, solvent-free, low-viscosity, clear primer (moisture barrier) for damp surfaces. Consumption 0.30-0.50 kg/m².

Main Product 0,1-0,3 mm Kuvars Kumu (60-70 AFS)
~0.4 kg/m²

Added to the primer at a 1:1 ratio depending on the condition of the surface. Consumption 0.30-0.50 kg/m².
2

Crack-Bridging Membrane
Required

Main Product FOX EPOTHANE® ISO-CRACK EP-2K

An epoxy polyurethane-based, 100% solids, flexible membrane — designed to prevent cracks from reflecting through to the surface.

Main Product FOX CAM TEKSTİLİ FİLE 160 gr/m²

Anti-fracture / crack prevention system mesh.
3

Broadcast
Required

Main Product 0,2-0,5 mm Kuvars Kumu (40-45 AFS)
~1.5 kg/m²

Broadcast over the wet primer. Consumption 1.00-2.00 kg/m².
4

Profile
Required

Main Product FOX TERRAZZO L STRIP 8/20 mm

Aluminium profile 8/20 mm high, developed specifically to create patterns; the height is selected according to the system thickness. Consumption varies with pattern density.
5

Coating (Binder + Aggregate)
Required

Main Product FOX DOMINO® PLUS 20 TERRAZZO FD772
~24 kg/m²

A cement-based, high-strength, early-setting Fox Domino Plus Terrazzo binder; it can be pigmented in all RAL colours. Consumption 23.00-25.00 kg/m².

Main Product FOX AGREGA STANDART / EGZOTİK — KIRMA 1-3 / 2-4 / 3-6 / 6-9 mm
~36 kg/m²

Natural coloured crushed aggregate with specially graded sizes (1-3 / 2-4 / 3-6 / 6-9 mm). Consumption 34.50-37.50 kg/m².
5A

Grinding
Interlayer Step

The surface is ground dry or wet; after the pores are filled with the grouting layer, a final grinding is carried out.
6

Grouting
Required

Main Product FOX DOMINO® PLUS FD775

A cement-based, high-strength filling mortar — for filling the surface voids before the final grinding.
7

Top Coat (Matt)
Required

Main Product FOX DOMINO® PU SEALER FD793
~0.15 kg/m²

A polyurethane-based, one-component, UV-resistant, non-yellowing, water-repellent, clear protective material. Consumption 0.10-0.20 kg/m².

Main Product FOX PURATHANE® TOPCOAT WB
~0.125 kg/m²

A modified polyurethane-based, two-component, water-based, UV-resistant matt finish coat containing aliphatic isocyanate. Consumption 0.10-0.15 kg/m².

About Lycia Cement Medium · Matt

Lycia Cement Medium · Matt is a cement-based decorative terrazzo floor coating system used for floors exposed to very heavy mechanical and chemical loads, with an even surface, easy to clean, hygienic and applicable in the desired pattern and colour. This system uses 1-3 / 2-4 / 3-6 / 6-9 mm crushed aggregate and the surface is completed with a matt finish.

Quartz sand is broadcast over the epoxy primer; after the crack-bridging membrane and the pattern profiles, a mixture of FOX DOMINO® PLUS FD772 binder and crushed aggregate is prepared in a mortar mixer, poured onto the surface and spread with a notched trowel. The cured surface is ground dry and wet with diamond tooling so that the aggregate and the pattern are revealed; open pores are filled with FOX DOMINO® FILLER FD775 and FOX DOMINO® PU SEALER FD793 + FOX PURATHANE® TOPCOAT WB (matt) is applied as the top coat. The binder can be produced in all RAL colours. The surface can be walked on 8-10 hours after application is completed, is put into service after 24 hours and reaches its final strength in 7 days.

Consumption figures are given for ideal ambient and substrate conditions; a site inspection with our expert team is recommended before deciding on a system solution.

Advantages

It provides a flawless finish.
It can be walked on after 8 hours.
It hardens very quickly and becomes load-bearing after 24 hours.
Decorative and aesthetic floors can be achieved.
It can be completed with an anti-slip finish if required.
It is chemically resistant.
Because it is easy to clean, it creates hygienic environments.
It has high abrasion resistance.
It has high compressive strength.
It is easy to maintain.
It is solvent-free.
A gloss or matt finish coat can be achieved.

Technical Specifications

System Thickness	18-20 mm
Binder	FOX DOMINO® PLUS FD772 — cement-based, high-strength, early-setting
Aggregate	1-3 / 2-4 / 3-6 / 6-9 mm crushed (standard / exotic)
Top Coat	FOX DOMINO® PU SEALER FD793 + FOX PURATHANE® TOPCOAT WB (matt)
Colour	In RAL colours
Substrate Temperature	+10 °C / +30 °C
Adhesion Strength	To concrete >2 N/mm²
Compressive Strength (28 days)	60 N/mm²
Flexural Tensile Strength (28 days)	12 N/mm²
Shore D Hardness (28 days)	85
Taber Abrasion (1 kg, CS 10, 1000 cycles)	~300 mg
Pot Life	50 dakika
Ready for Use	Foot traffic 8-10 hours, use 24 hours, final strength 7 days (25 °C)

System Detail

Stage	Product / Application Type	Consumption
Primer	FOX EPOTHANE® PRIMER HB	0.4 kg/m²
Primer	0,1-0,3 mm Kuvars Kumu (60-70 AFS)	0.4 kg/m²
Crack-Bridging Membrane	FOX EPOTHANE® ISO-CRACK EP-2K	kg/m²
Crack-Bridging Membrane	FOX CAM TEKSTİLİ FİLE 160 gr/m²	kg/m²
Broadcast	0,2-0,5 mm Kuvars Kumu (40-45 AFS)	1.5 kg/m²
Profile	FOX TERRAZZO L STRIP 8/20 mm	kg/m²
Coating (Binder + Aggregate)	FOX DOMINO® PLUS 20 TERRAZZO FD772	24 kg/m²
Coating (Binder + Aggregate)	FOX AGREGA STANDART / EGZOTİK — KIRMA 1-3 / 2-4 / 3-6 / 6-9 mm	36 kg/m²
Grouting	FOX DOMINO® PLUS FD775	kg/m²
Top Coat (Matt)	FOX DOMINO® PU SEALER FD793	0.15 kg/m²
Top Coat (Matt)	FOX PURATHANE® TOPCOAT WB	0.125 kg/m²

Areas of Use

Schools
Shopping Malls
Offices
Restaurants
Showrooms
Hotels
Banks
Public Buildings
Hospitals
Airport Terminals
Railway Stations
Spaces Requiring Hygienic Conditions

Which substrates can it be applied to?

It is applied to concrete floors at least 28 days old, of minimum class C25 and with a pull-off strength above 2.0 N/mm²; the concrete moisture content at 2 cm depth must be below 4%. Laitance is removed with abrasive equipment and repairs are made with a mixture of FOX EPOTHANE® PRIMER + quartz sand.

What is the difference between matt and gloss finishes?

The finish is determined by the top coat product. This system has a matt finish: FOX DOMINO® PU SEALER FD793 + FOX PURATHANE® TOPCOAT WB (matt). For a matt finish, FOX PURATHANE® TOPCOAT WB is applied over FOX DOMINO® PU SEALER FD793; the gloss finish is achieved with the lithium silicate based FOX HARDTOP® LI PREMIUM FF845 and LI GLOSS FF847. There is no semi-matt option in the cement system.

How does it differ from epoxy terrazzo?

The cement-based binder is applied at a thickness of 18-20 mm, hardens very quickly (can be walked on after 8 hours, load-bearing after 24 hours) and is solvent-free. For projects requiring higher chemical resistance and a thickness of 9-11 mm, the epoxy-based FOX ZEUGMA EPOXY TERRAZZO is recommended.

Is a non-slip finish possible?

Yes. The system can be completed with a non-slip floor finish on request; please consult our technical team for wet areas and spaces requiring hygienic conditions.

When is the coating ready for use?

At 25 °C the floor can be walked on 8-10 hours after the application is completed and can be put into use after 24 hours; it reaches its final mechanical and chemical resistance at the end of 7 days. Lower temperatures extend these times.

How is it cleaned and maintained?

It is cleaned with neutral detergents or alkaline solutions diluted to a concentration of 5-10%. Regular maintenance extends the service life of the floor and reduces its tendency to soil.

System Products

FOX EPOTHANE® PRIMER HB

FOX EPOTHANE® PRIMER HB is a two-component, solvent-free, low-viscosity transparent epoxy primer set developed for dry and damp concrete and steel surfaces. It is used as a primer under epoxy and polyurethane floor coatings.

Suitable for interior and exterior use.
Can be applied and fully cures below +10°C and up to 100% relative humidity.
Provides good corrosion protection on steel.

FOX EPOTHANE® ISO-CRACK EP-2K

FOX EPOTHANE® ISO-CRACK EP-2K is a 100% solids, two-component, flexible epoxy-polyurethane membrane designed to prevent reflective cracking in FOX BAU TERRAZZO coating systems. With 140–160% elongation at break, it provides superior crack bridging against horizontal surface movement.

100% solids for low odour and workplace safety during installation.
Provides excellent adhesion.
Has excellent chemical resistance.

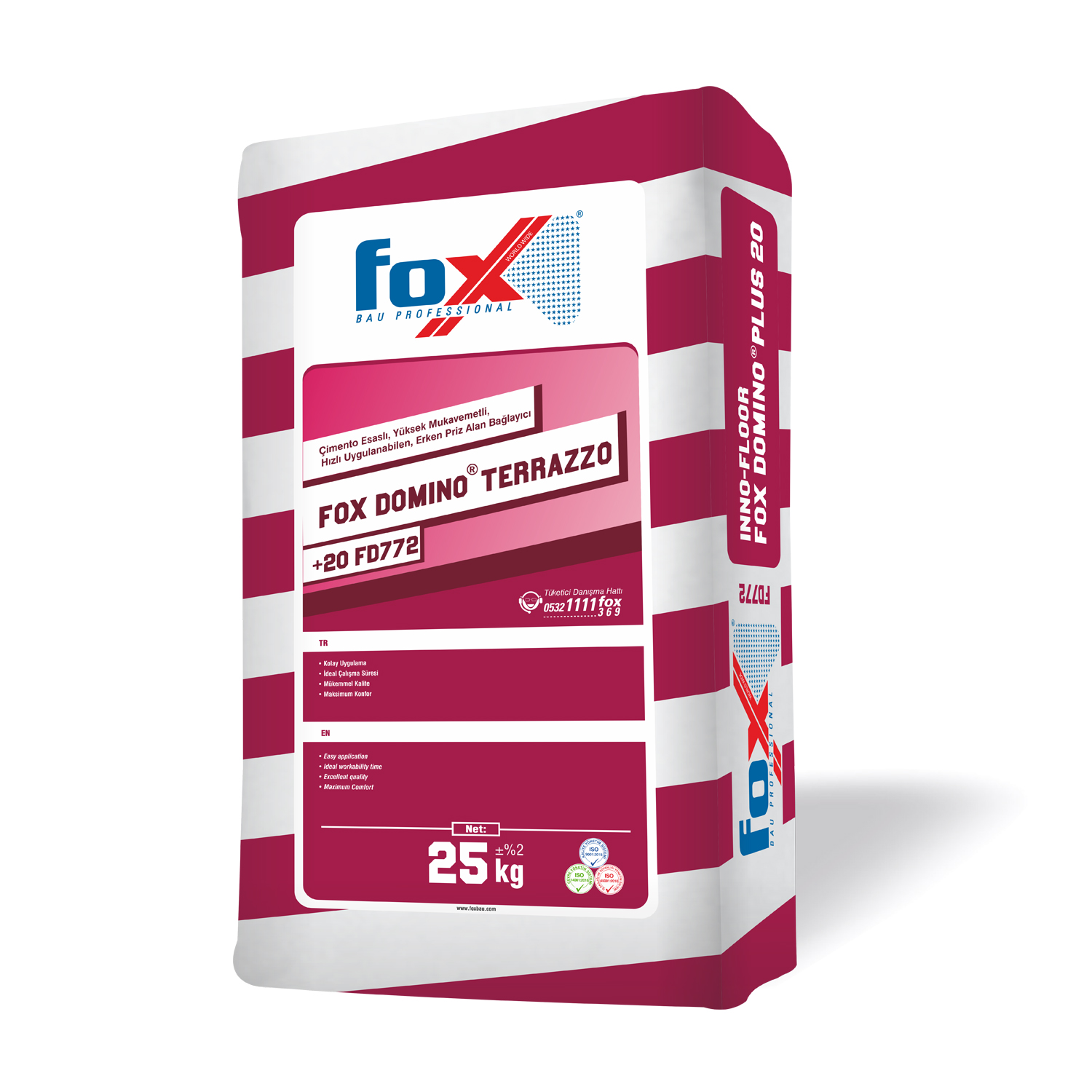

FOX DOMINO® TERRAZZO +20 FD772

FOX DOMINO® TERRAZZO +20 FD772 is a cement-based, high-strength, early-setting binder developed specifically for the FOX DOMINO® PLUS TERRAZZO system. It offers rapid return to traffic in both interior and exterior applications.

Fast to apply.
Walkable after 8 hours.
Very rapid hardening; load-bearing after 24 hours.

FOX DOMINO® FILLER FD775

FOX DOMINO® FILLER FD775 is a cement-based, high-strength, early-setting joint filler developed specifically for the FOX DOMINO PLUS TERRAZO system.

Fast to apply.
Walkable after 8 hours.
Very rapid hardening; load-bearing after 24 hours.

FOX DOMINO® PU SEALER FD793

FOX DOMINO® PU SEALER FD793 is a single-component, polyurethane-based, solvent-borne transparent topcoat protective material that prevents dusting on all types of concrete floors, imparts a glossy appearance, and provides water-repellent properties.

High abrasion resistance; prevents dusting and creates a harder surface.
Provides waterproofing; prevents cracking that may result from freezing.
Used as a polish thanks to the glossy film layer it forms.

FOX PURATHANE® TOPCOAT WB

FOX PURATHANE® TOPCOAT WB is a modified polyurethane-based, two-component, water-based, UV-resistant topcoat with high abrasion resistance, containing aliphatic isocyanate. It is used in epoxy and polyurethane floor systems, on walls and in various industrial areas.

UV resistant.
Provides excellent adhesion.
Has excellent abrasion resistance.

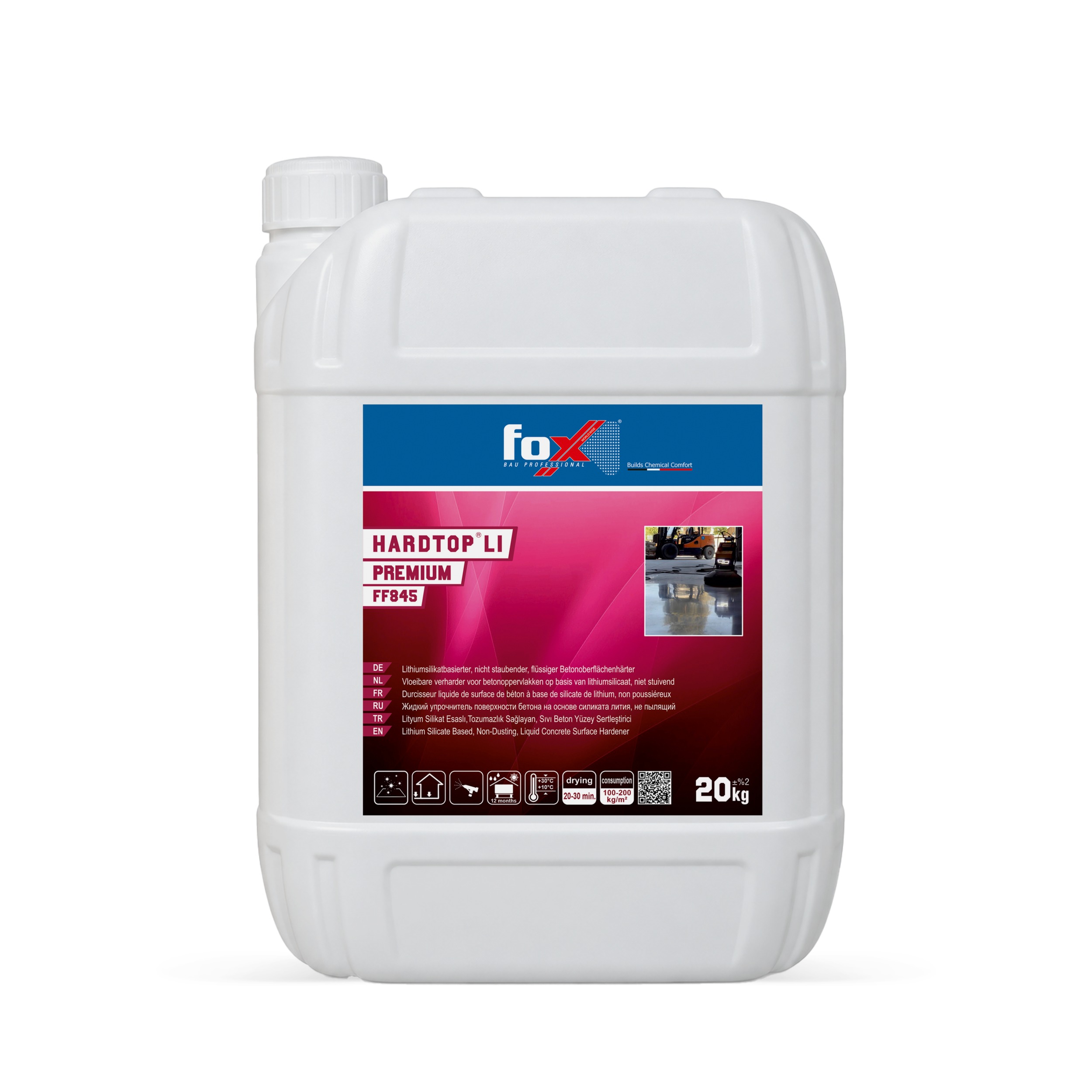

FOX HARDTOP® LI PREMIUM FF845

FOX HARDTOP® LI PREMIUM FF845 is a lithium silicate-based, liquid concrete surface hardener that provides dust-proofing on new and existing concrete surfaces. With its excellent penetration and rapid hardening properties, it delivers high performance on industrial floors.

Has a high lithium content.
100% of the solid content is active ingredient.
Features rapid hardening and dust-proofing properties.

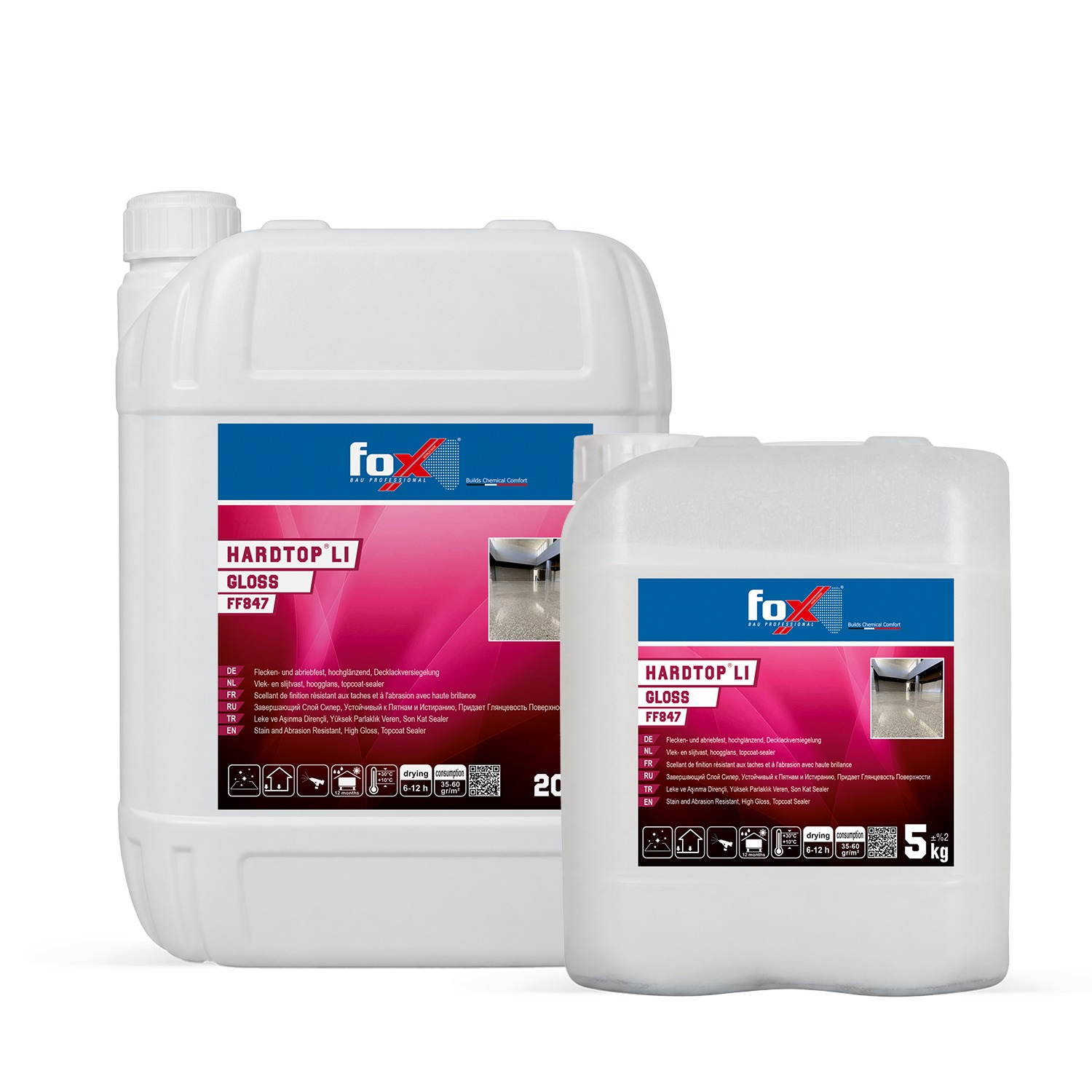

FOX HARDTOP® LI GLOSS FF847

FOX HARDTOP® LI GLOSS FF847 is a lithium silicate-based, silicone and polymer modified concrete sealer that provides high gloss, stain resistance, and abrasion resistance. It can be applied to both old and new concrete surfaces.

Has a high lithium content.
100% of the solid content is active ingredient.
Provides rapid polishing and stain resistance.
